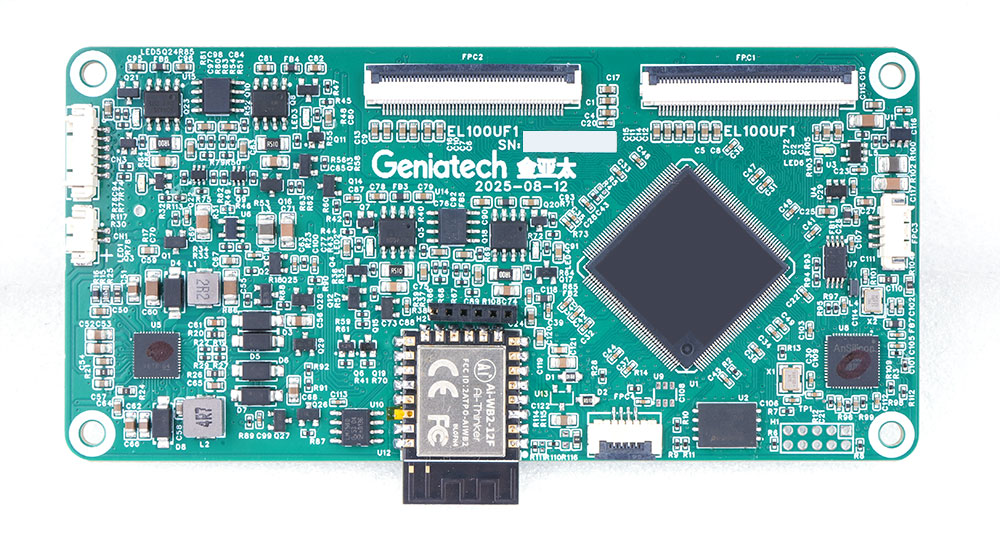

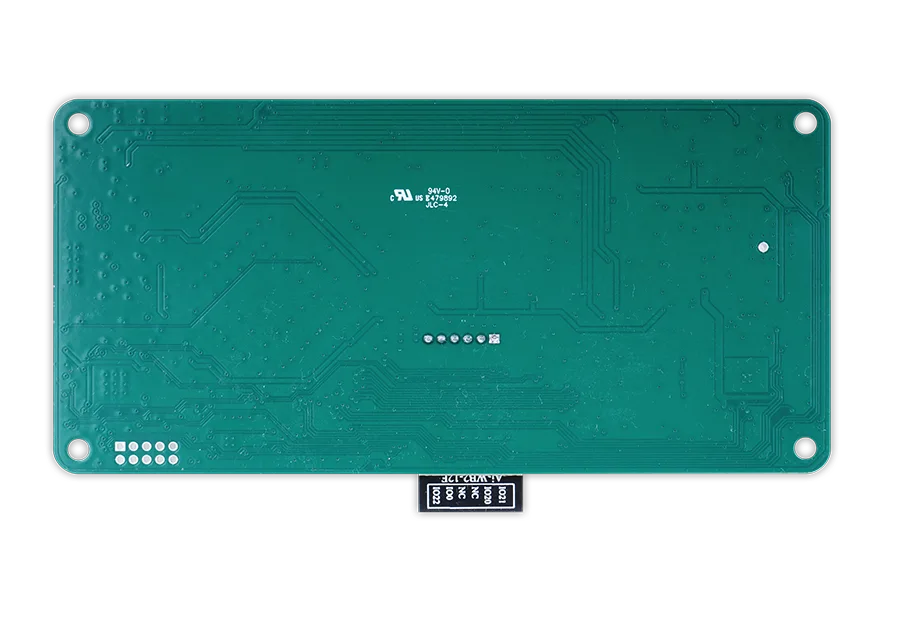

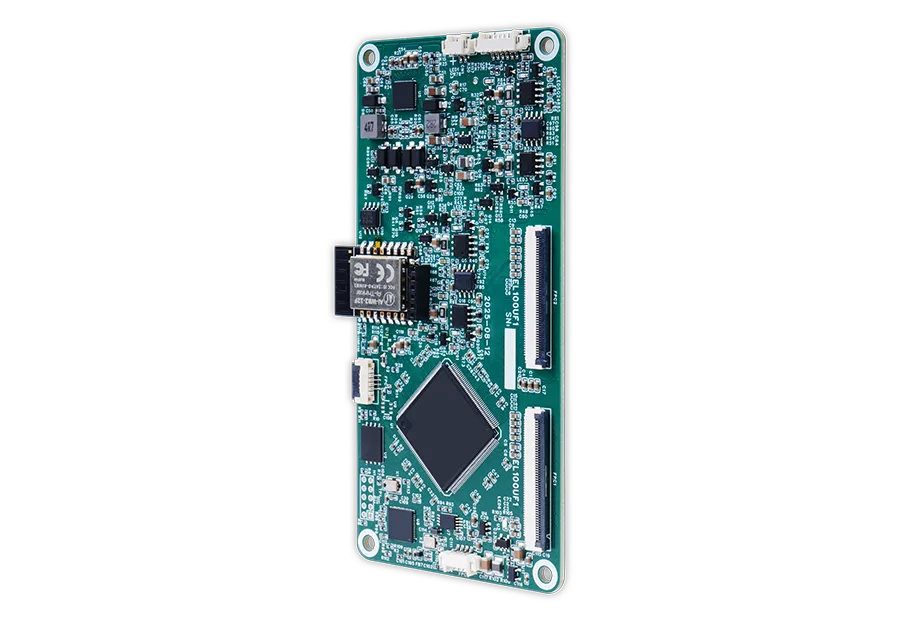

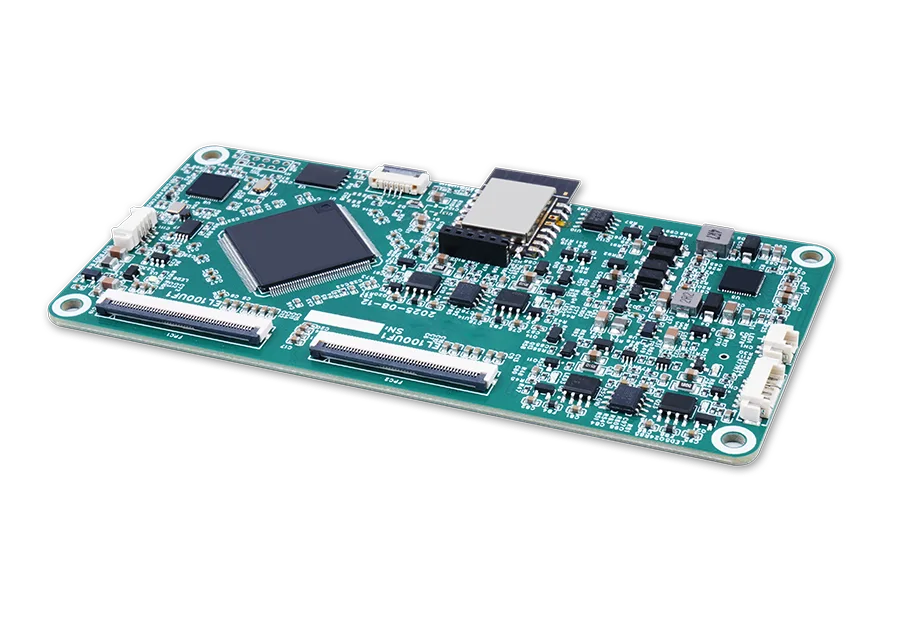

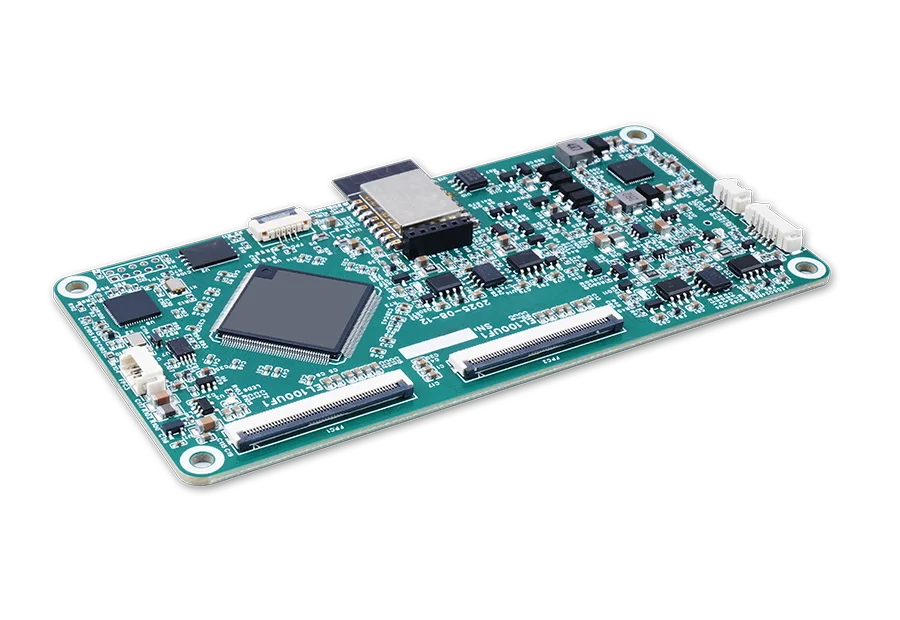

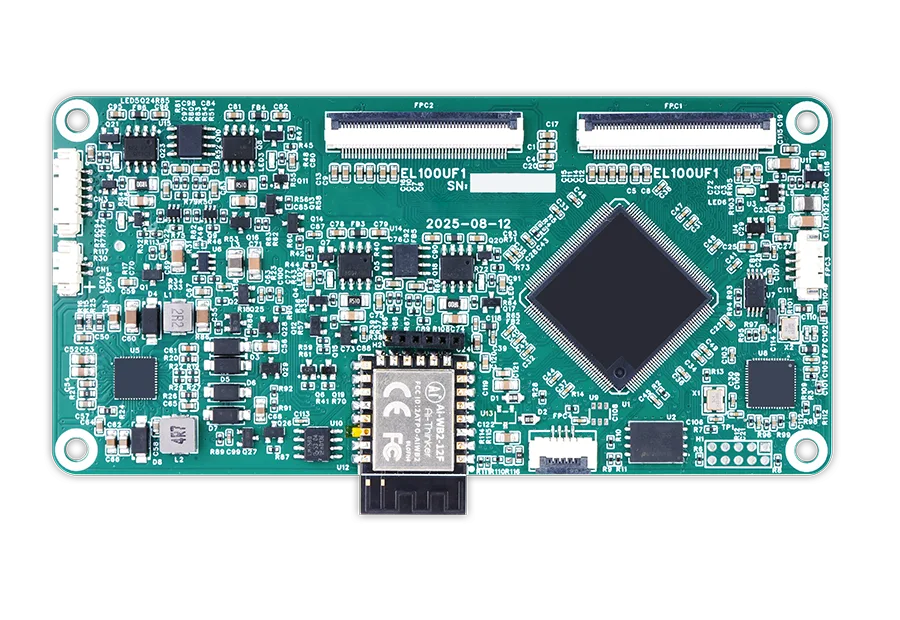

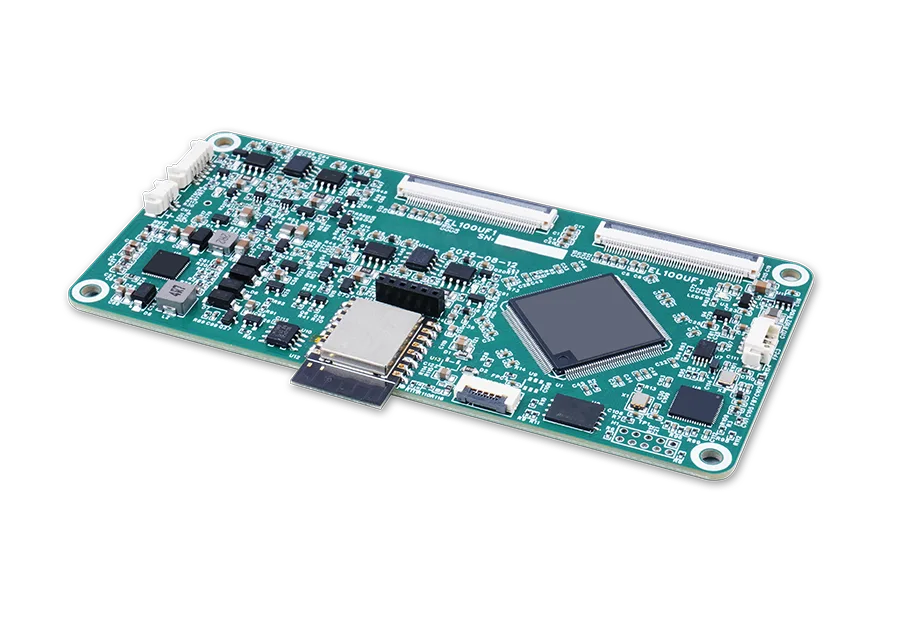

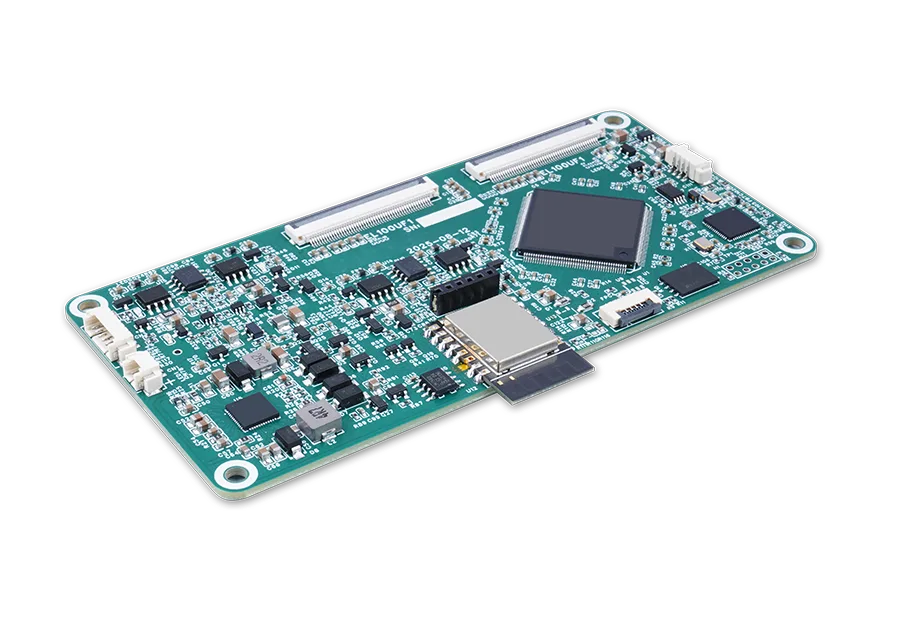

MyGica EPC1000-TCON is an MCU-integrated TCON board built for E Ink Spectra™ 6-color 10-inch e-paper modules. With ultra-low power consumption, onboard wireless connectivity, and turnkey development tools, it delivers reliable performance for digital signage, photo frames and smart display applications.
| Display Module Specifications | |
|---|---|
| Screen Size | 10 inches |
| Resolution | 1600 × 1200 |
| Screen Type | E Ink Spectra™ 6 E-paper Display |
| Screen Aspect Ratio | 4:3 |
| Effective Display Area | 203.2 × 152.4 mm |
| Supported Display Colors | 6-color (black/white/red/yellow/blue/green) |
| PPI | 200 |
| Demo App | |
| OS | Android 6.0 and above |
| Image Upload Time | 26 seconds |
| Image Refresh Time | 34 seconds |
| Image Update Tool | Mobile App (smartphone) |
| Languages | Chinese and English |
| Transmission Method | WiFi |
| Controller Board Specifications | |
| MCU | BL602 |
| Memory | 276 KB RAM |
| Storage | 128 KB, Flash: 4 MB |
| WiFi | 2.4G |
| Bluetooth | 5 |
| Power & Environment | |
| Battery Capacity | 2500 mA |
| Standard Battery Voltage | 3.7V |
| Power Supply Voltage | 5V |
| Power Supply Method | Battery-powered and TYPEC input |
| Battery Life | 12 months (refresh twice per day) |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -25°C ~ 60°C |
